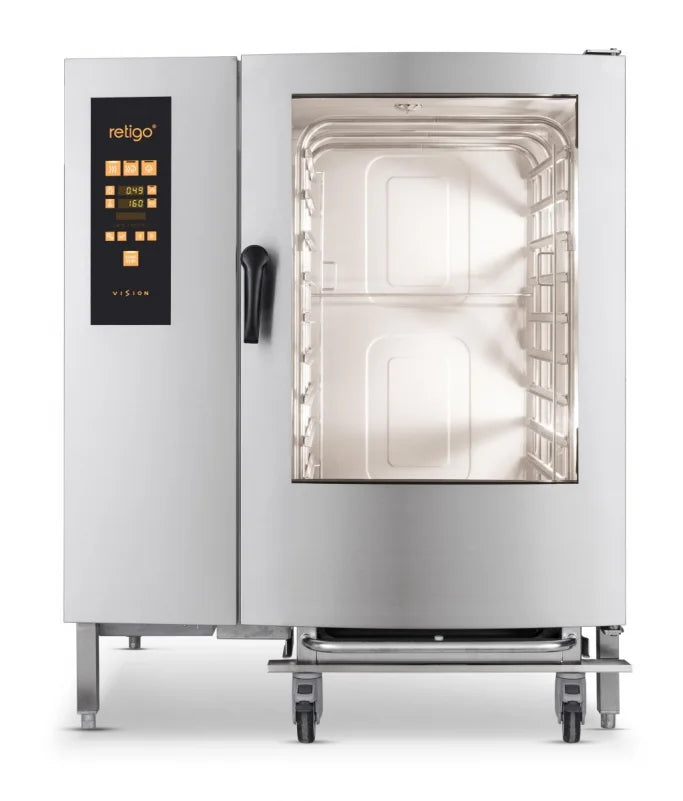

The RETIGO Orange Vision O 1221 is a professional combi oven with a capacity of 12 × GN 2/1. The model series of combi ovens RETIGO Orange Vision was created from requirements to satisfy customers with fewer demands on the number of functions in the basic configuration, but with emphasis on high quality and easy control. As opposed to the model series Blue Vision, Orange Vision combi ovens are equipped only with an automatic cleaning system, 7-speed fan, and essential basic functions.
Key features
Simple LED display controls
Automatic cleaning system
7-speed fan
Optional integrated hand shower, flap valve and 99 programs with 9 steps
Technical specifications
Version
Electric – steam injection
Electric – steam boiler
Gas – steam injection
Energy
Electricity
Electricity
Gas
Steam generation
Injectable
Boiler
Injectable
Capacity
12 x GN2/1
12 x GN2/1
12 x GN2/1
Meals per day
400-600
400-600
400-600
Dimensions (W × H × D)
1111 x 1343 x 961 mm
1111 x 1343 x 961 mm
1111 x 1343 x 961 mm
Weight
210 kg
220 kg
229 kg
Total power
37.1 kW
37.1 kW
1.28 kW
Heat output
36 kW
36 kW
45 kW
Steam generator power
-
33 kW
-
Electrical connection
3N~/380-415V/50-60 Hz
3N~/380-415V/50-60 Hz
1N~(2~)/220-240V/50-60 Hz
Temperature range
30 - 300 °C
30 - 300 °C
30 - 300 °C
Available as electric – steam injection, electric – steam boiler or gas – steam injection. Choose the version above or ask us which one suits your kitchen.
