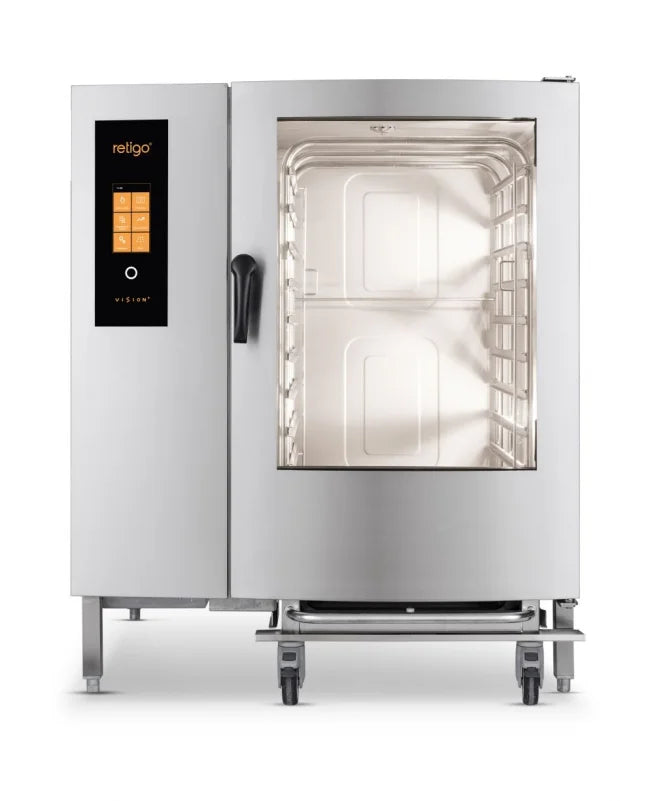

The RETIGO Orange Vision Plus O 1221+ is a professional combi oven with a capacity of 12 × GN 2/1. The new range of Retigo Orange Vision Plus combi ovens brings a completely new standard, which combines amazing simplicity of operation thanks to the 7” touch screen with the Vision Controls system and great equipment in the basic price, including 99 programs.
Key features
7" quick-response touch screen with Vision Controls
99 programs as standard
Active cleaning
7 fan speeds with automatic fan stop
HACCP data on the main screen; LAN / Ethernet connection
Crosswise GN orientation for safety and better visual control
Technical specifications
Version
Electric – steam injection
Electric – steam boiler
Gas – steam injection
Energy
Electricity
Electricity
Gas
Steam generation
Injectable
Boiler
Injectable
Capacity
12 x GN2/1
12 x GN2/1
12 x GN2/1
Meals per day
400-600
400-600
400-600
Dimensions (W × H × D)
1111 x 1343 x 961 mm
1111 x 1343 x 961 mm
1111 x 1343 x 961 mm
Weight
210 kg
220 kg
229 kg
Total power
37.1 kW
37.1 kW
1.28 kW
Heat output
36 kW
36 kW
45 kW
Steam generator power
-
33 kW
-
Electrical connection
3N~/380-415V/50-60 Hz
3N~/380-415V/50-60 Hz
1N~(2~)/220-240V/50-60 Hz
Temperature range
30 - 300 °C
30 - 300 °C
30 - 300 °C
Available as electric – steam injection, electric – steam boiler or gas – steam injection. Choose the version above or ask us which one suits your kitchen.
