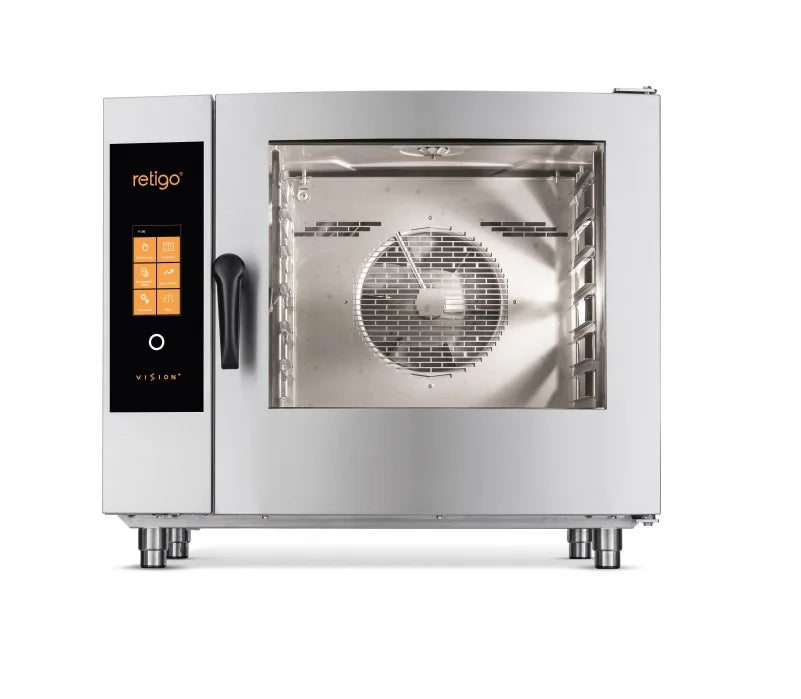

The RETIGO Orange Vision Plus O 611+ is a professional combi oven with a capacity of 7 × GN 1/1. The new range of Retigo Orange Vision Plus combi ovens brings a completely new standard, which combines amazing simplicity of operation thanks to the 7” touch screen with the Vision Controls system and great equipment in the basic price, including 99 programs.
Key features
7" quick-response touch screen with Vision Controls
99 programs as standard
Active cleaning
7 fan speeds with automatic fan stop
HACCP data on the main screen; LAN / Ethernet connection
Crosswise GN orientation for safety and better visual control
Technical specifications
Version
Electric – steam injection
Electric – steam boiler
Gas – steam injection
Energy
Electricity
Electricity
Gas
Steam generation
Injectable
Boiler
Injectable
Capacity
7 x GN1/1
7 x GN1/1
7 x GN1/1
Optional capacity
5 x 600/400
5 x 600/400
5 x 600/400
Meals per day
51-150
51-150
51-150
Dimensions (W × H × D)
933 x 786 x 821mm
933 x 786 x 821mm
933 x 786 x 821mm
Weight
116 kg
122 kg
127 kg
Total power
10.9 kW
10.9 kW
0.74 kW
Heat output
10.3 kW
10.3 kW
13 kW
Steam generator power
-
9 kW
-
Electrical connection
3N~/380-415V/50-60 Hz
3N~/380-415V/50-60 Hz
1N~(2~)/220-240V/50-60 Hz
Temperature range
30 - 300 °C
30 - 300 °C
30 - 300 °C
Available as electric – steam injection, electric – steam boiler or gas – steam injection. Choose the version above or ask us which one suits your kitchen.
