The Scotsman AF / EF Series Flake Ice Maker is a self-contained ice maker with a built-in storage bin. Models produce from 70 to 190 kg of ice per day, with 25–60 kg of built-in storage.
Flake ice is produced just below 0 °C. It is highly versatile: fish counters, buffet displays, frozen drinks, and wine and champagne buckets.
Available models: AF 87, AF 107, AF 127, AF 157, EF 107, EF 127, EF 157. Choose the model above or ask us which size fits your daily ice demand.
Models and specifications
Model
Condensing
Max. production / 24 h
Bin capacity
Dimensions W × D × H

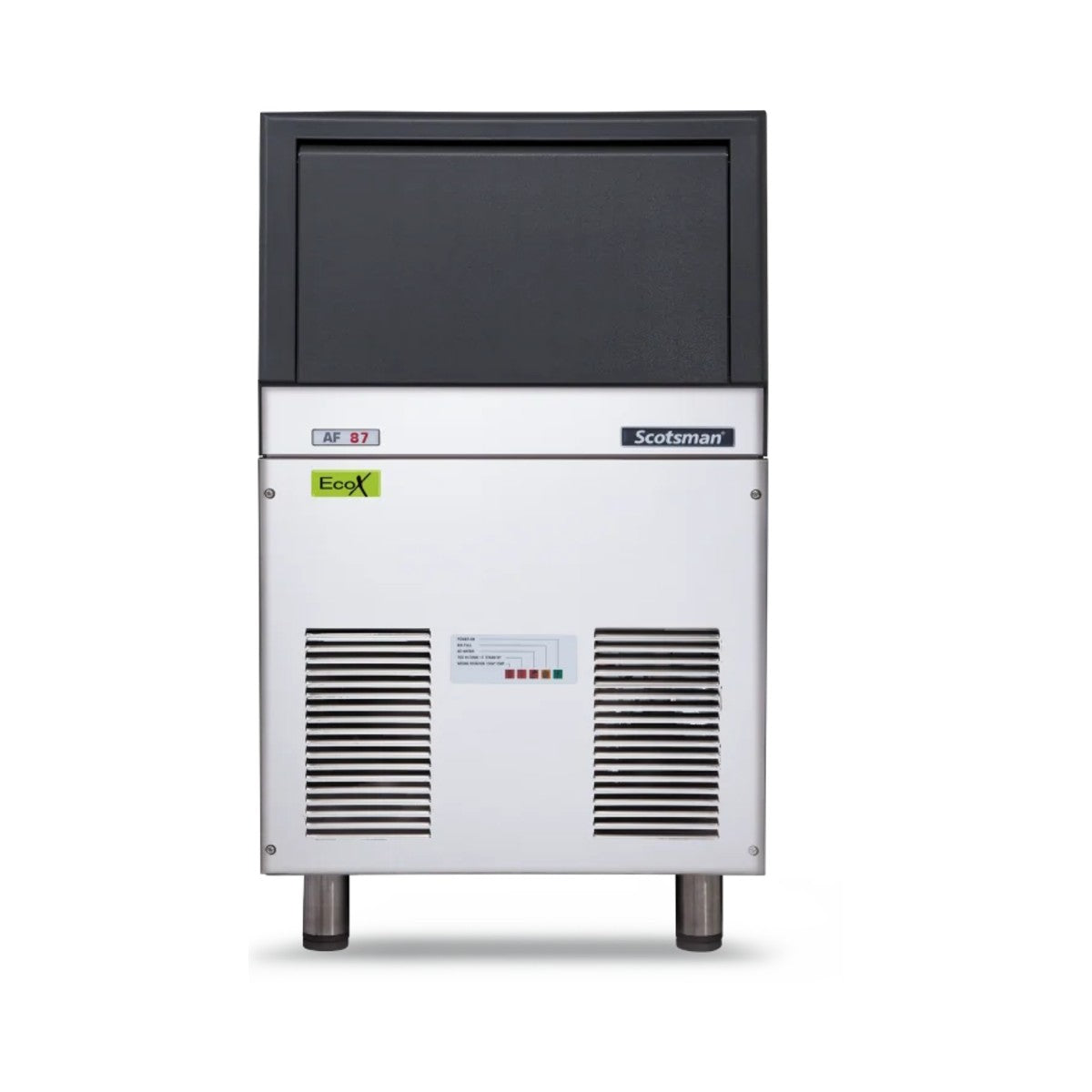

AF 87
Air
70 kg
25 kg
535 × 620 × 797 mm (with legs: 890 mm H)

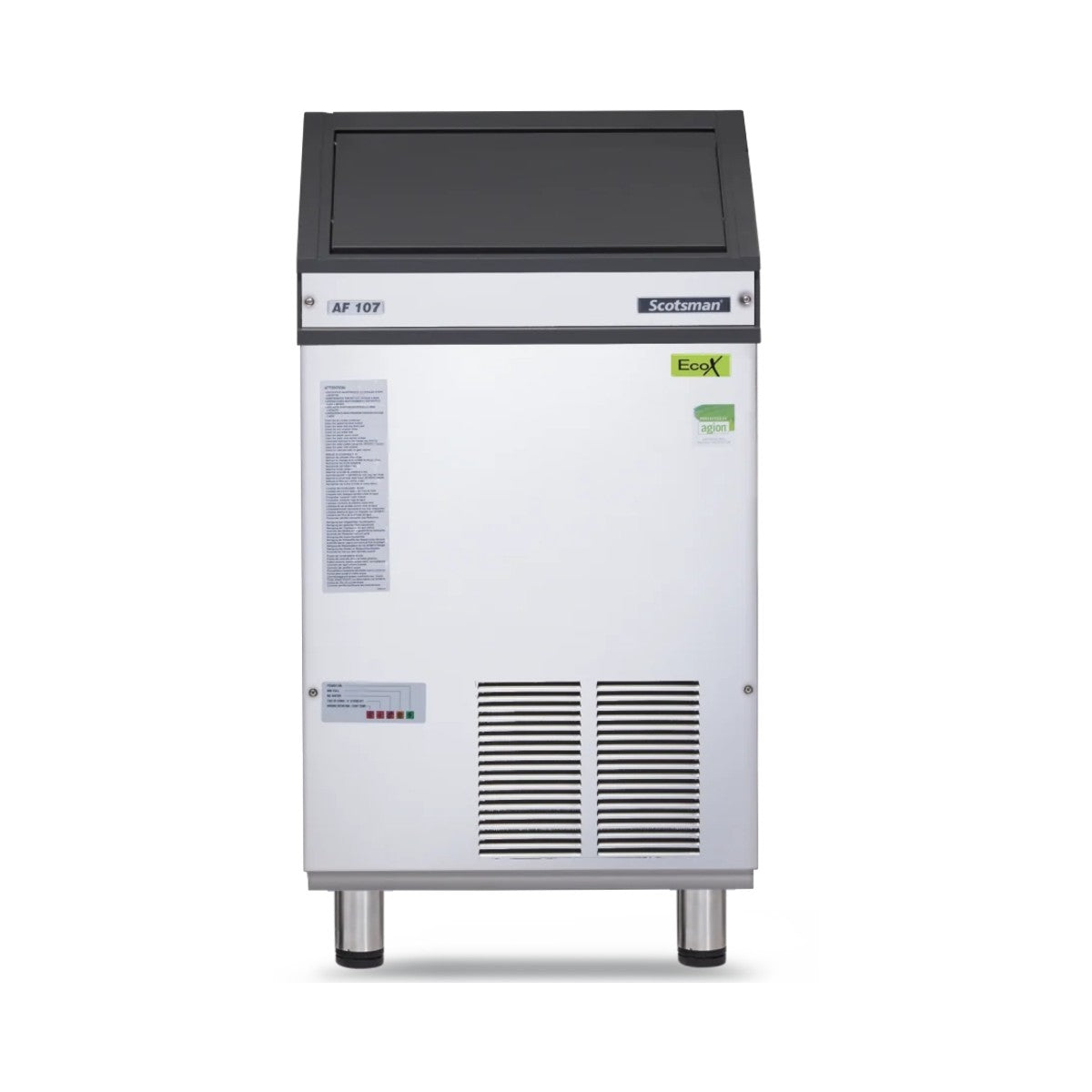

AF 107
Air
130 kg
30 kg
592 × 622 × 997 mm (with legs: 1078 mm H)
AF 127
Air
120 kg
40 kg
950 × 605 × 789 mm (with legs: 872 mm H)
AF 157
Air
190 kg
60 kg
950 × 605 × 1000 mm (with legs: 1083 mm H)
EF 107
Air
130 kg
30 kg
592 × 622 × 997 mm (with legs: 1078 mm H)

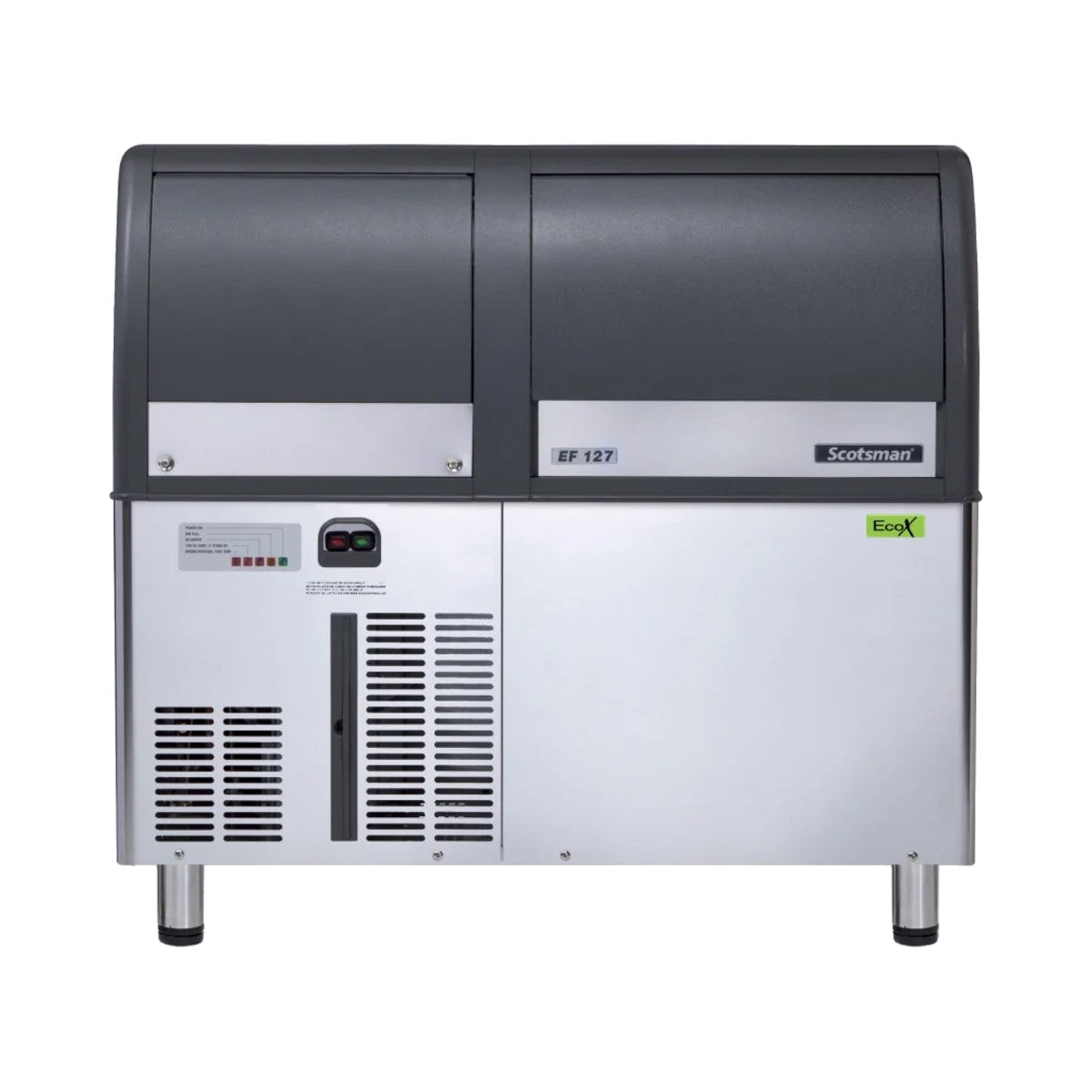

EF 127
Air
122 kg
40 kg
950 × 605 × 789 mm (with legs: 872 mm H)

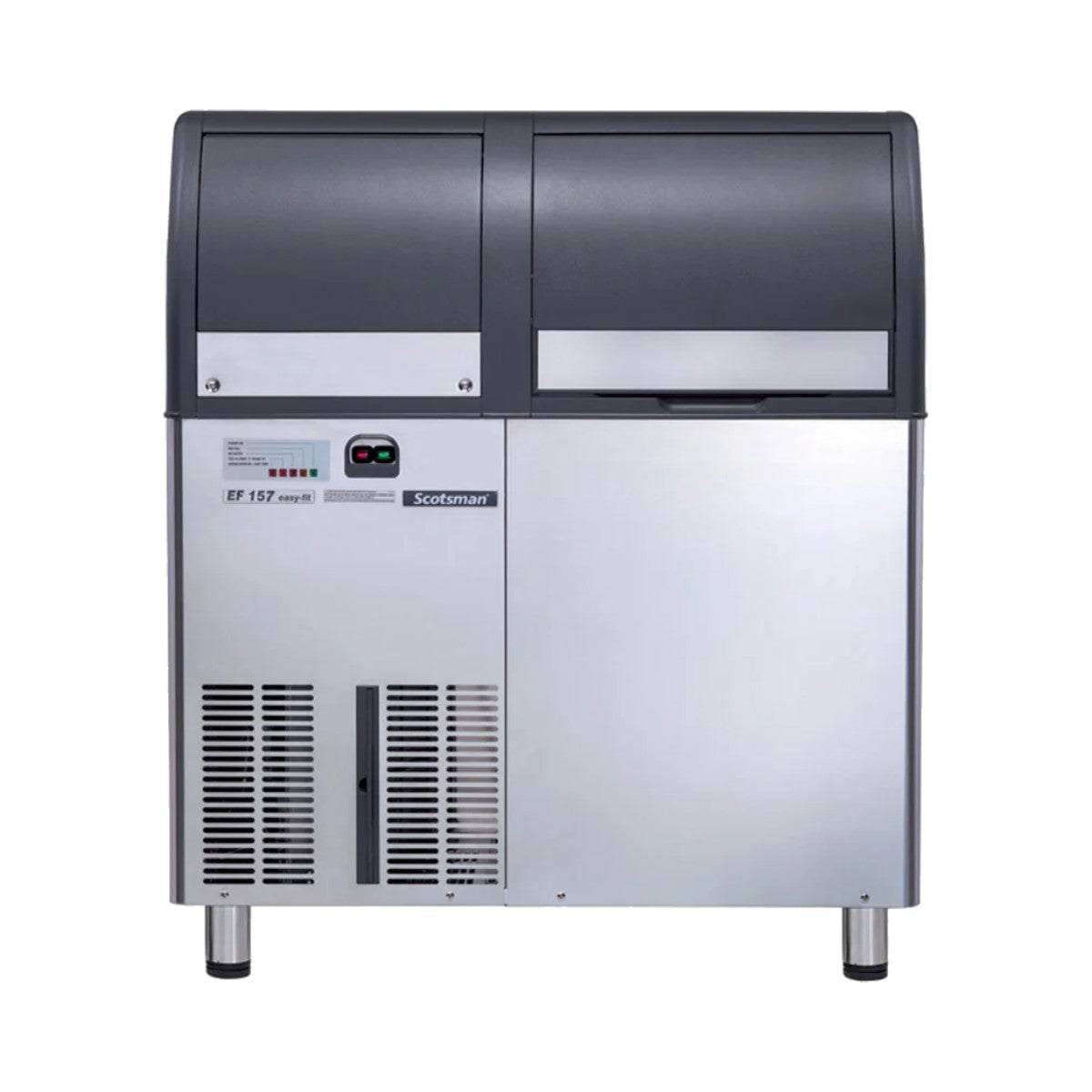

EF 157
Air
190 kg
60 kg
950 × 605 × 1000 mm (with legs: 1083 mm H)
Production figures are maximum values for the standard model, as published by Scotsman.
