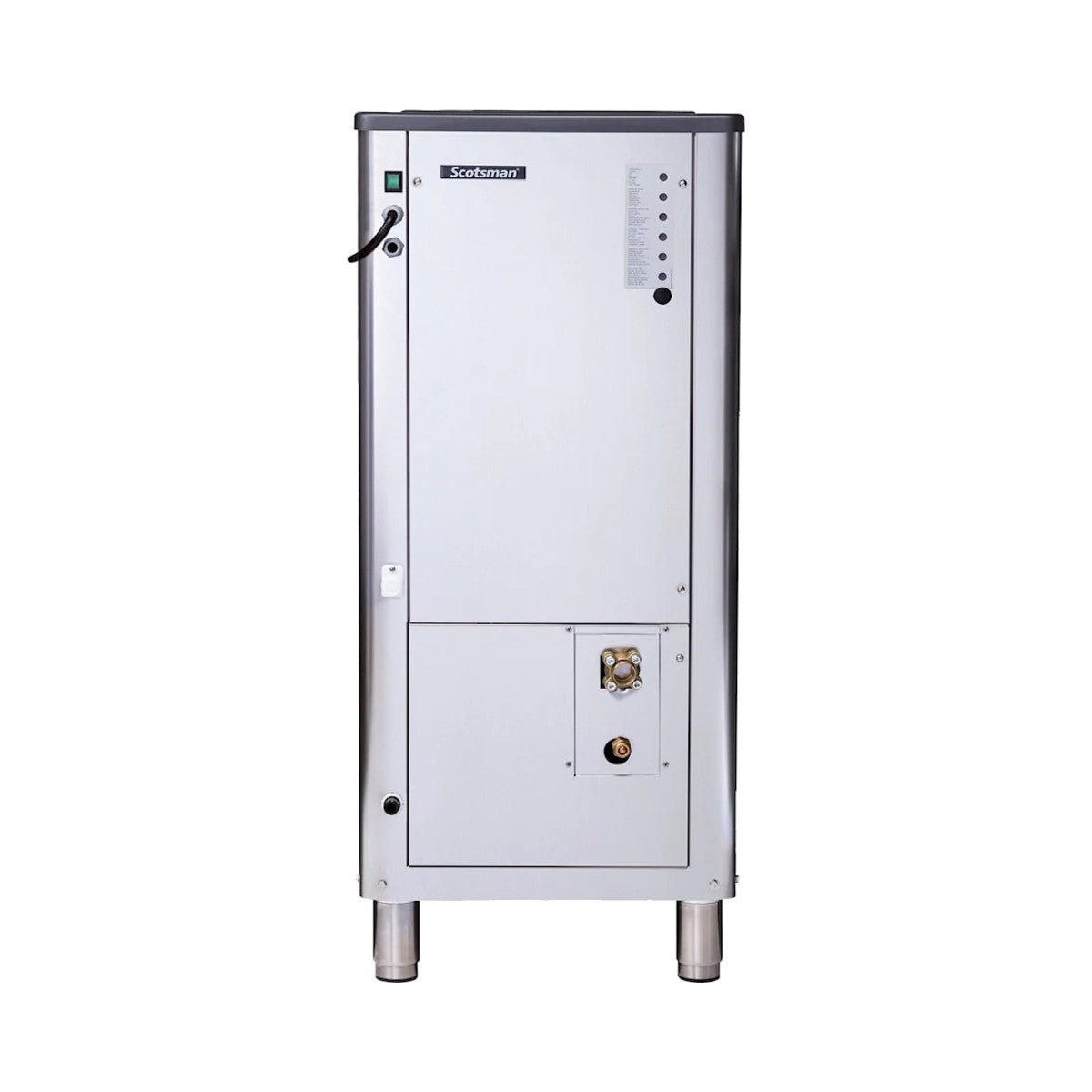

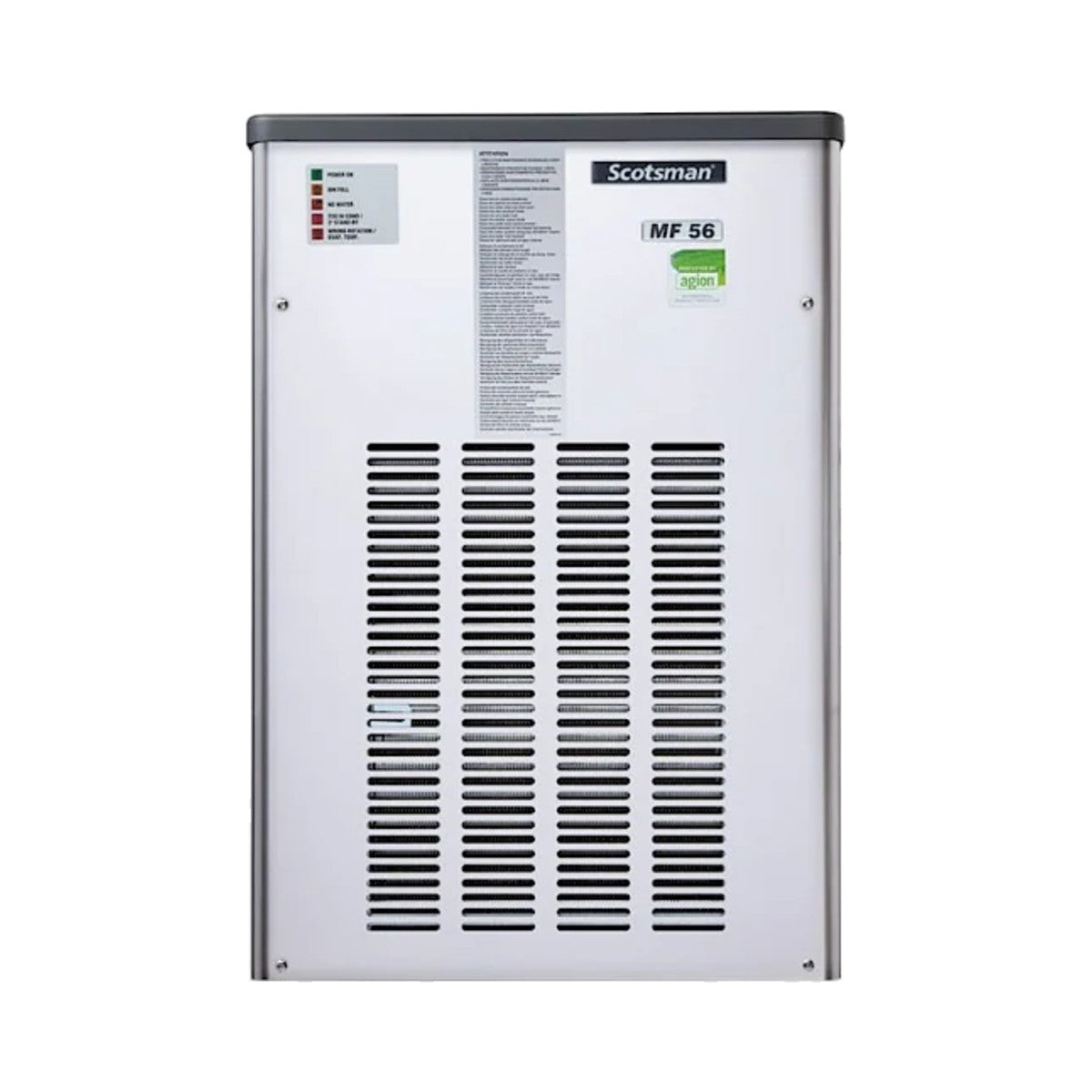

The Scotsman MF Series Modular Flake Ice Maker is a modular (head-only) ice maker designed to sit on a Scotsman storage bin or dispenser. Models produce from 600 to 2500 kg of ice per day.
Flake ice is produced just below 0 °C. It is highly versatile: fish counters, buffet displays, frozen drinks, and wine and champagne buckets.
Available models: MF 56, MF 58 SPLIT, MF 59 SPLIT CO2, MF 66, MF 68 SPLIT, MF 69 SPLIT CO2, MF 86, MF 88 SPLIT. Choose the model above or ask us which size fits your daily ice demand.
Models and specifications
Model
Condensing
Max. production / 24 h
Dimensions W × D × H
MF 56
Remote
600 kg
538 × 663 × 785 mm
MF 58 SPLIT
Split
600 kg
538 × 663 × 785 mm (with legs: 794 mm H)
MF 59 SPLIT CO2
Split
700 kg
538 × 663 × 785 mm (with legs: 794 mm H)
MF 66
Remote
1150 kg
1065 × 698 × 850 mm
MF 68 SPLIT
Split
1150 kg
538 × 663 × 785 mm (with legs: 794 mm H)
MF 69 SPLIT CO2
Split
1400 kg
538 × 663 × 785 mm
MF 86
Remote
2400 kg
1080 × 780 × 1140 mm (with legs: 1255 mm H)
MF 88 SPLIT
Split
2500 kg
540 × 777 × 1140 mm (with legs: 1255 mm H)
Production figures are maximum values for the standard model, as published by Scotsman.
