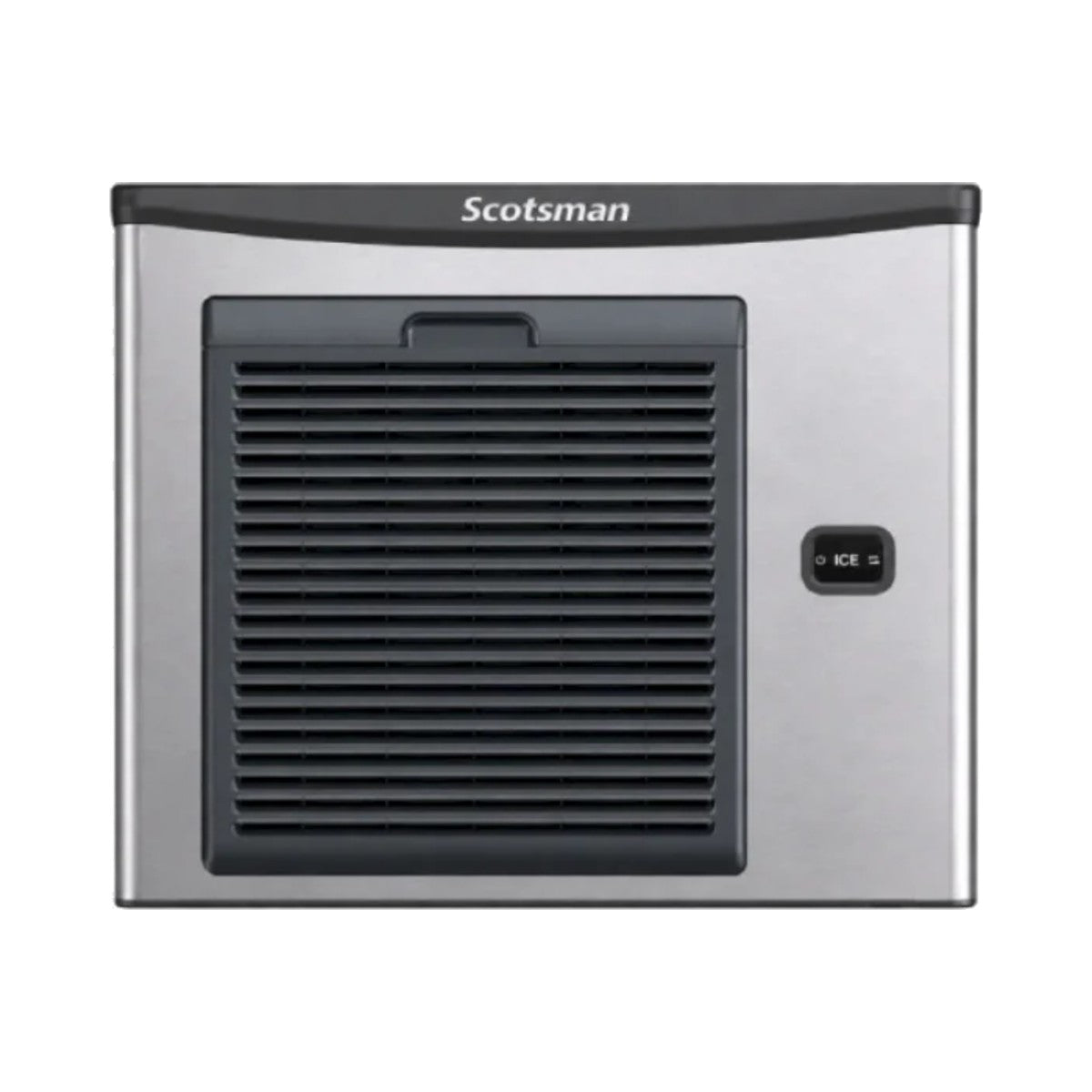

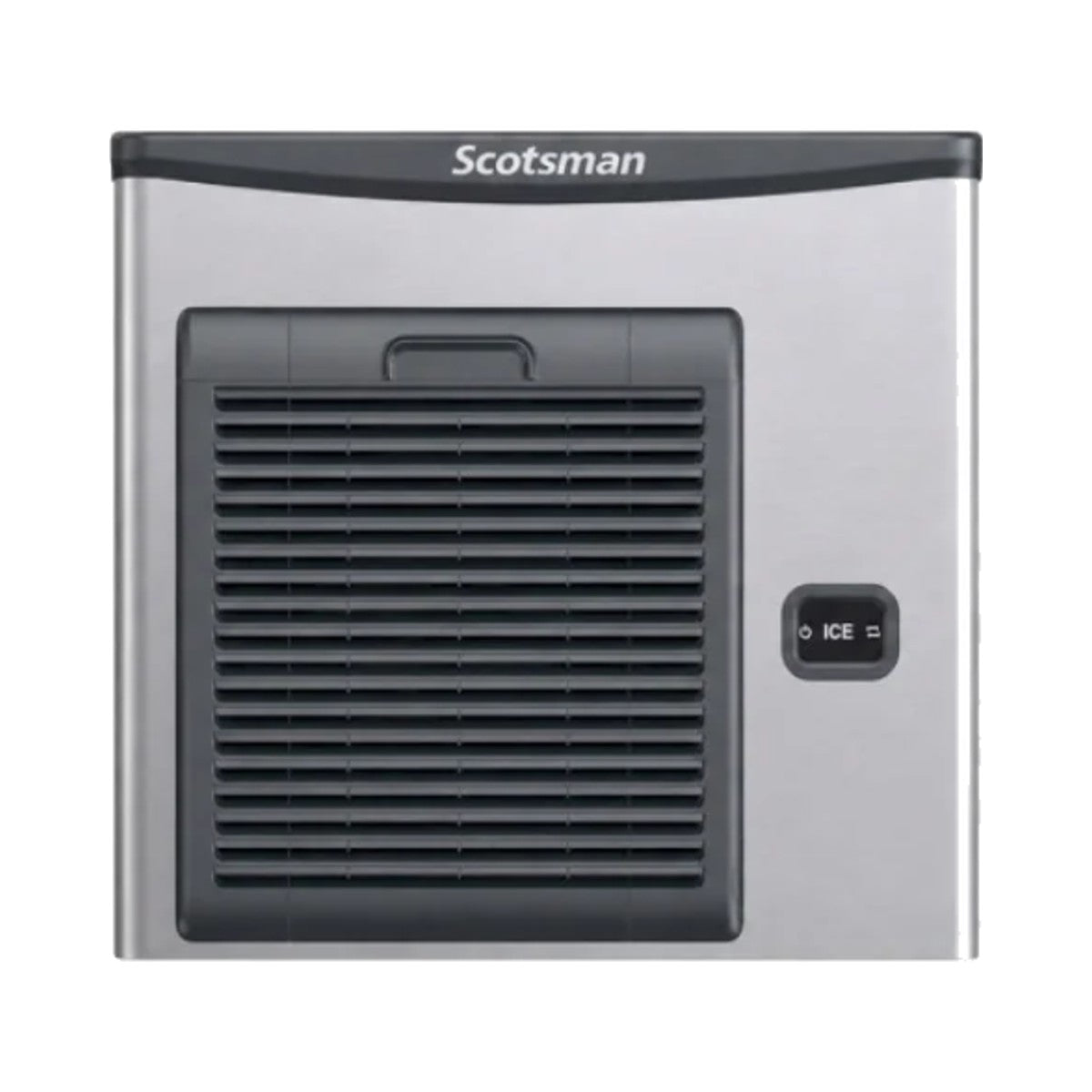

The Scotsman MXF Series Modular Flake Ice Maker is a modular (head-only) ice maker designed to sit on a Scotsman storage bin or dispenser. Models produce from 133 to 570 kg of ice per day.
Flake ice is produced just below 0 °C. It is highly versatile: fish counters, buffet displays, frozen drinks, and wine and champagne buckets.
Available models: MXF 327 OX, MXF 327 SPA, MXF 427 OX, MXF 427 SPA, MXF 627, MXF 1027, MXF 1229, MXF 1237. Choose the model above or ask us which size fits your daily ice demand.
Models and specifications
Model
Condensing
Max. production / 24 h
Dimensions W × D × H
MXF 327 OX
Air / Water
133 kg
560 × 615 × 450 mm
MXF 327 SPA
Water / Air
146 kg
560 × 615 × 450 mm
MXF 427 OX
Water / Air
240 kg
560 × 615 × 600 mm
MXF 427 SPA
Air / Water
240 kg
560 × 615 × 600 mm
MXF 627
Air
300 kg
560 × 615 × 600 mm
MXF 1027
Air
500 kg
560 × 615 × 735 mm
MXF 1229
Split
570 kg
560 × 619 × 653 mm
MXF 1237
Air
550 kg
765 × 615 × 650 mm
Production figures are maximum values for the standard model, as published by Scotsman.
