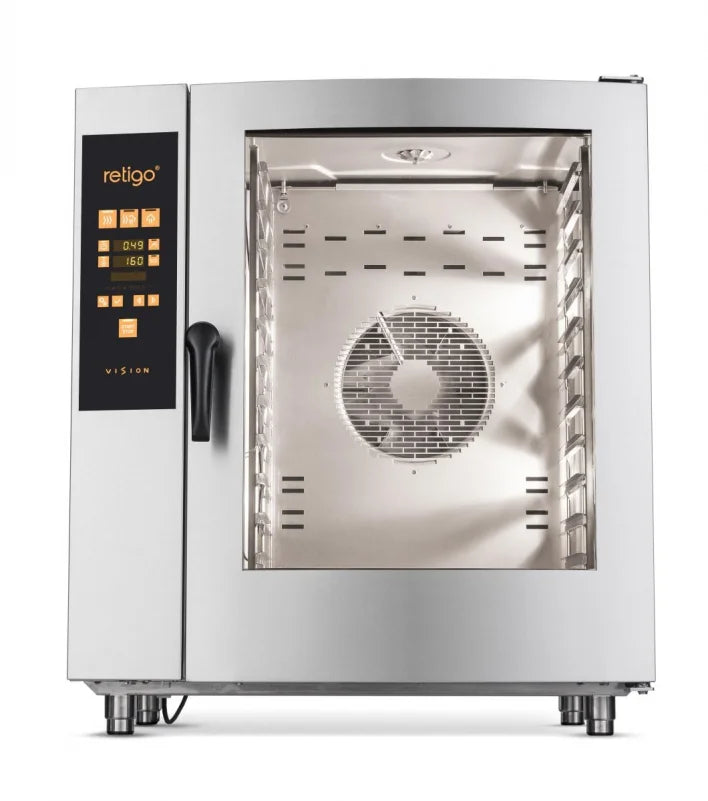

The RETIGO Orange Vision O 1011 is a professional combi oven with a capacity of 11 × GN 1/1. The model series of combi ovens RETIGO Orange Vision was created from requirements to satisfy customers with fewer demands on the number of functions in the basic configuration, but with emphasis on high quality and easy control. As opposed to the model series Blue Vision, Orange Vision combi ovens are equipped only with an automatic cleaning system, 7-speed fan, and essential basic functions.
Key features
Simple LED display controls
Automatic cleaning system
7-speed fan
Optional integrated hand shower, flap valve and 99 programs with 9 steps
Technical specifications
Version
Electric – steam injection
Electric – steam boiler
Gas – steam injection
Energy
Electricity
Electricity
Gas
Steam generation
Injectable
Boiler
Injectable
Capacity
11 x GN1/1
11 x GN1/1
11 x GN1/1
Optional capacity
8 x 600/400
8 x 600/400
8 x 600/400
Meals per day
151-250
151-250
151-250
Dimensions (W × H × D)
933 x 1080 x 818mm
933 x 1080 x 818mm
933 x 1080 x 818mm
Weight
138 kg
144 kg
149 kg
Total power
18.6 kW
18.6 kW
0.74 kW
Heat output
18 kW
18 kW
22.5 kW
Steam generator power
-
18 kW
-
Electrical connection
3N~/380-415V/50-60 Hz
3N~/380-415V/50-60 Hz
1N~(2~)/220-240V/50-60 Hz
Temperature range
30 - 300 °C
30 - 300 °C
30 - 300 °C
Available as electric – steam injection, electric – steam boiler or gas – steam injection. Choose the version above or ask us which one suits your kitchen.
