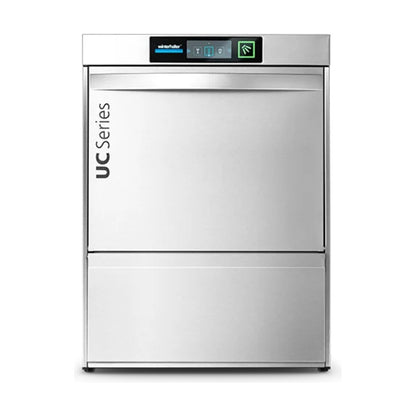

The Winterhalter UC Series is the compact, dependable undercounter warewasher – available as a glasswasher, dishwasher or bistro washer (dishes, glasses and cutlery in one machine) and in four sizes: S, M, L and XL.
Features

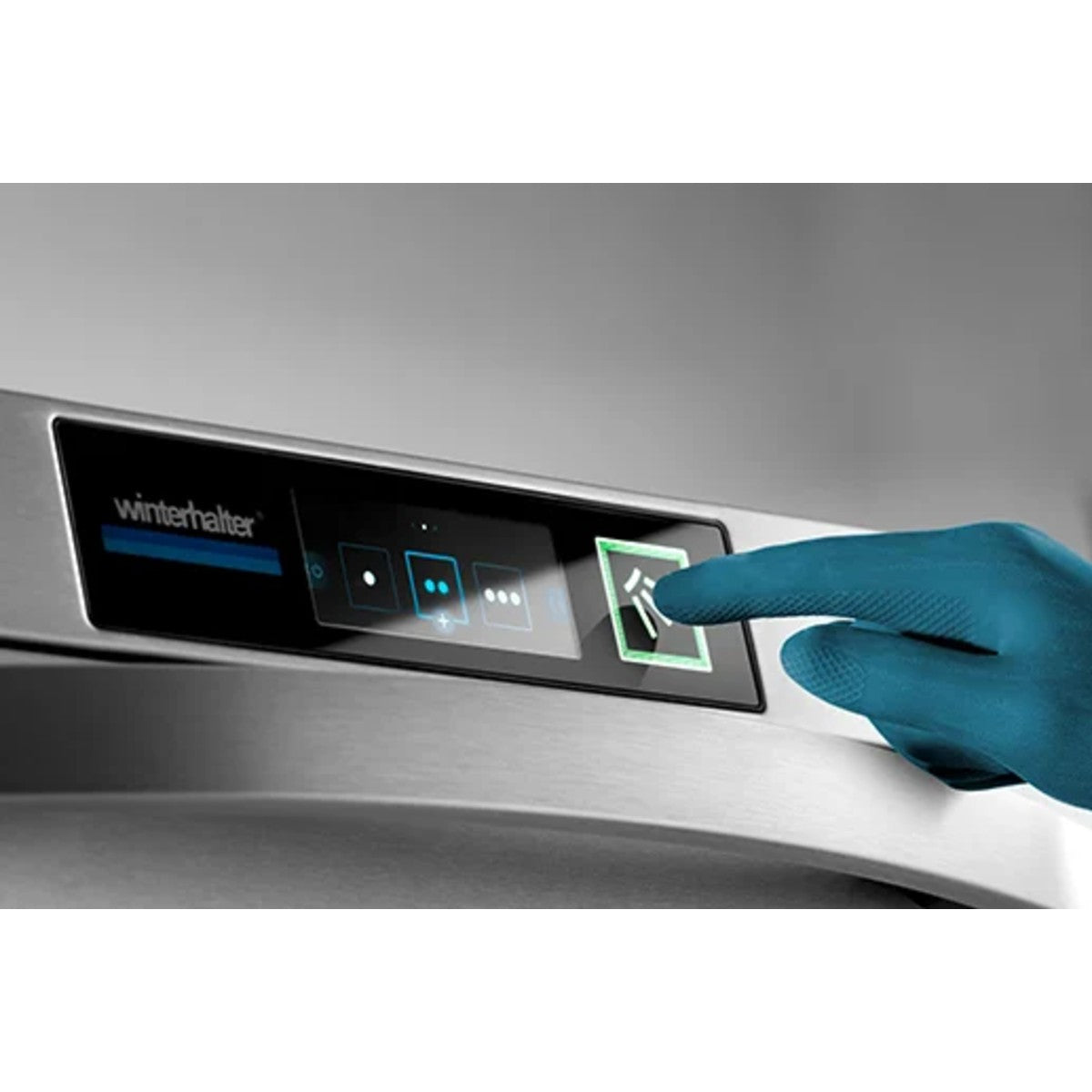

Smart touch display – single-button operation, self-explanatory pictograms, works with gloves
VarioPower variable wash pressure as standard – gentle on fine glasses, powerful on heavy soiling
Flow-optimised wash field – up to 25% less water, electricity and chemicals than the previous model
Special programmes: ECO, Silence, intensive, short, soaking, descaling and self-cleaning
Optional Energy circulating-air heat recovery – lower running costs and almost no steam when opening
Optional Excellence-i integrated reverse osmosis (sizes S and M) for spotless glasses without polishing; Excellence-iPlus with integrated softener
Optional integrated detergent and rinse aid containers
CONNECTED WASH remote monitoring
Technical data
Size
W × D (mm)
Height (mm)
Rack size (mm)
Clear entry height
Tank
UC-S
460 × 603
725 – 760
400 × 400
309 mm
9.5 l
UC-M
600 × 603
725 – 760
500 × 500
309 mm
–
UC-L
600 × 603
820 – 855
500 × 500
404 mm
15.3 l
UC-XL
600 × 637
820 – 855
500 × 500 / 500 × 540
404 mm
15.3 l
Theoretical capacity (depending on programme): glasswasher 77 / 48 / 32 / 22 racks per hour; dishwasher 66 / 40 / 28 / 24 racks per hour; bistro 66 / 40 / 32 / 28 racks per hour. Rinse water from approx. 2 l per rack. Heights with Energy heat recovery are approx. 85 mm higher.
Genuine Winterhalter equipment. Water treatment, detergents, rinse aids and wash racks available. Quote on request – call or WhatsApp +971 54 775 7637.
